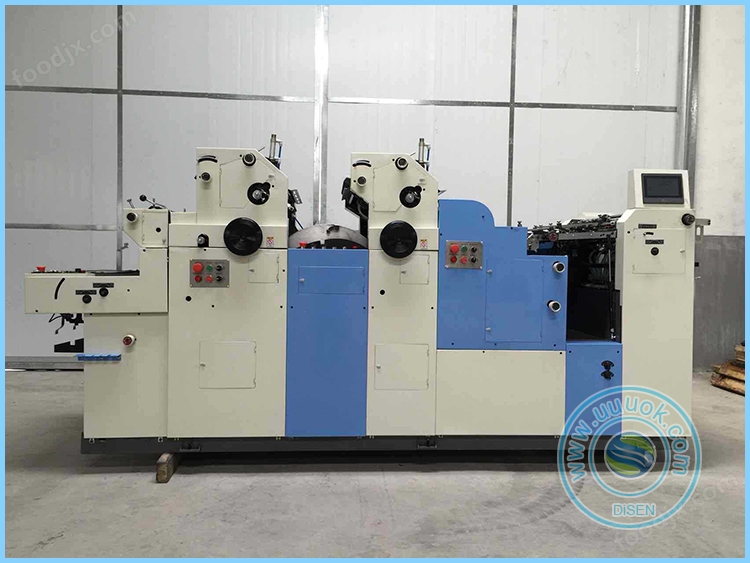

247/256/262NP Two-color offset press 每組采用三墨二水，更為完善的供墨系統，限度地保證了滿版印刷的墨量供應和著墨效果，保證完成高精度的印刷品質。并且一次可以完成雙色印刷，獨特的紙張交接傳遞，誤差小，保證兩次套印的準精度。使彩色印刷、網線疊壓，圖案清晰，色澤亮麗不串色。極大的提高了效率，降低了生產成本，充分體現了短版快印的特點。
| Product Name : | 247/256/262NP Two-color offset press |
Features:
Using 120 ° heavy machine three drum angle, wall thickening, the printing color than the horizontal machine is more full, uniform, easy to install version, unloading version, the operation more convenient and fast.
Each with three ink two water, a more comprehensive system for the ink, the maximum guarantee of the full version of the printing ink supply and inking effect, to ensure the completion of high-precision printing quality. And a two-color printing can be completed, the transfer of a unique paper transfer, the error is small, to ensure the quasi-precision of two overlay. So that color printing, network cable pressure, clear pattern, bright color does not string color. Greatly improve the efficiency and reduce production costs, and fully embodies the characteristics of the short version of fast printing.
Technical Parameters:
| Model | DSS-247IIBNP | DSS-256IIBNP |
| Maximum paper size | 470*365mm | 560*390mm |
| Maximum printing area | 450*345mm | 550*375mm |
| Plate size | 470*395*0.15 mm | 560*417*0.15mm |
| Blanket size | 470*420*1.95 mm | 560*460*1.95 mm |
| Paper type | 28-250g/ m2 | |
| Number of ink rollers | First printing unit:14 pieces(3 form ink rollers) Second printing unit 14 pieces(3 form ink rollers) | |
| Number of dampening rollers | 5 pieces in each printing unit(2 form rollers in each unit) | |
| Registering mechanism | Roller type side lay | |
| Printing speed | 2000-8000 sheets/hour | |
| Motor power | Main motor:1.5KW/220V Air pump motor:1.0KW/220V | |
| Machine size | 2910*935*1400mm | 2910*1035*1400mm |
| Weight | 1700KG | 1760KG |
Features:
1) 120 ° heavy machine with three drum angles and thick wallboard.
2) compact structure, small footprint.
3) Each ink set adopts three ink two water structure, with water evenly ink, printed goods shop full clear
4) The water, ink, pressure are used pneumatic control, easy to operate, stable performance.
5) The transfer paper part of the unit adopts the whole roller transfer paper structure, the paper is smooth and the printing is accurate.
6) with non-stop cable-stayed version, version of roller shaft fine-tuning device, version of the fast, convenient, high efficiency.
7) The electrical part adopts the advanced PLC control system, the degree of automation is high.
8) Toppan Printing (resin version), coding, pressing the rice noodle can be completed (optional).
Pneumatic control features:
1. The pressure between the printing plate cylinder, the impression cylinder and the blanket cylinder adopts the pneumatically combined pressure, which is easier to be damaged under the tie bar mode than the traditional electromagnet pull rod type structure. And the pressure stability, network clear, good reduction.
2. Dial code with pneumatic mode, compared with the traditional solenoid-type rod, especially in the printing with no carbon copy paper jump code, the reaction is fast, easy to error.
3. Pneumatic control of vertical rice noodle, horizontal rice noodle knife, instead of the traditional rice noodles can not be free to jump characteristics, according to the need to set the number of jumps. Pneumatic control can make the pressing pressure more stable.
4. Automatic lubrication oil supply system. Can be based on the machine running automatically to the machine lubrication.
性能特點：
采用120°重型機三滾筒角度，墻板加厚，使印刷色彩比臥式機更飽滿、均勻，便于裝版、卸版，操作更方便、快捷。
每組采用三墨二水，更為完善的供墨系統，限度地保證了滿版印刷的墨量供應和著墨效果，保證完成高精度的印刷品質。并且一次可以完成雙色印刷，獨特的紙張交接傳遞，誤差小，保證兩次套印的準精度。使彩色印刷、網線疊壓，圖案清晰，色澤亮麗不串色。極大的提高了效率，降低了生產成本，充分體現了短版快印的特點。
技術參數：
|
| 47IIB | 47IIBNP | 56IIB | 56IIBNP |
| 用紙尺寸Maximum paper size | 470*365mm | 560*390mm | ||
| 印刷面積Maximum printing area | 450*345mm | 550*375mm | ||
| 印版尺寸Plate size | 470*395*0.15 mm | 560*417*0.15mm | ||
| 橡皮布尺寸Blanket size | 470*420*1.95 mm | 560*460*1.95 mm | ||
| 紙張類型Paper type | 28-250g/ m2 | |||
| 墨輥數量Number of ink rollers | First printing unit:14 pieces(3 form ink rollers) Second printing unit 14 pieces(3 form ink rollers) | |||
| 水輥數量Number of dampening rollers | 5 pieces in each printing unit(2 form rollers in each unit) | |||
| 套準機構Registering mechanism | 滾輪式側拉規 Roller type side lay | |||
| 印刷速度 Printing speed | 2000-8000張 /小時 2000-8000 sheets/hour | |||
| 電機功率 Motor power | 主電機1.5KW/220V Main motor1.5KW/220V 氣泵電機1.0KW/220V Air pump motor1.0KW/220V | |||
| 機械尺寸Machine size | 2300*935*1400mm | 2910*935*1400mm | 2300*1035*1400mm | 2910*1035*1400mm |
| 重量 Weight | 1500KG | 1700KG | 1560KG | 1760KG |
性能特點：
1）采用120°重型機三滾筒角度和加厚墻板。
2）結構緊湊，占地面積小。
3）每機組水墨部分采用三墨兩水結構，著水著墨均勻，印品網店飽滿清晰
4）著水、著墨、版壓均采用氣動控制，操作簡便，性能穩定。
5）機組傳紙部分采用全滾筒傳紙結構，走紙平穩，套印準確。
6）設有不停機斜拉版、版滾筒軸微調裝置，調版快捷、方便、工作效率高。
7）電器部分采用的PLC控制系統，自動化程度高。
8）凸版印刷（樹脂版）、打碼、壓米線可一次完成(可選)。
氣動控制功能特點:
1．印版滾筒、壓印滾筒與橡皮滾筒之間的壓力采用氣動合壓，較傳統電磁鐵拉桿式結構，解決了拉桿模式下易損壞的情況。且壓力穩定，網點清晰，還原性好。
2．撥碼采用氣動模式，與傳統電磁鐵拉桿式相比較，特別是在印刷配聯無碳復寫紙跳碼時，反應快，不易出錯。
3．氣動控制豎米線、橫米線刀，代替了傳統米線不可隨意跳壓的特點，可根據需要任意設置跳壓張數。氣動控制可使壓線壓力更穩定，。
4．自動潤滑供油系統。可以根據機器運轉情況自動給機器潤滑。
